Main features: good economy, improved combustion at low load due to use of “HALLO” technology (smooth fuel consumption curve, quite low consumption even at part load), good startability and speed-up performance, high reliability, low noise and long service life (first overhaul interval up to 24000h), convenient to service. Based on TBD604B diesel engines, TBD620 diesel engines are uprated, and the crankcase structure is more proper, more robust, less deformation and can bear high explosion pressure. The two types of engines have no special requirement on fuel and can meet the requirement of IMO Nox emission.

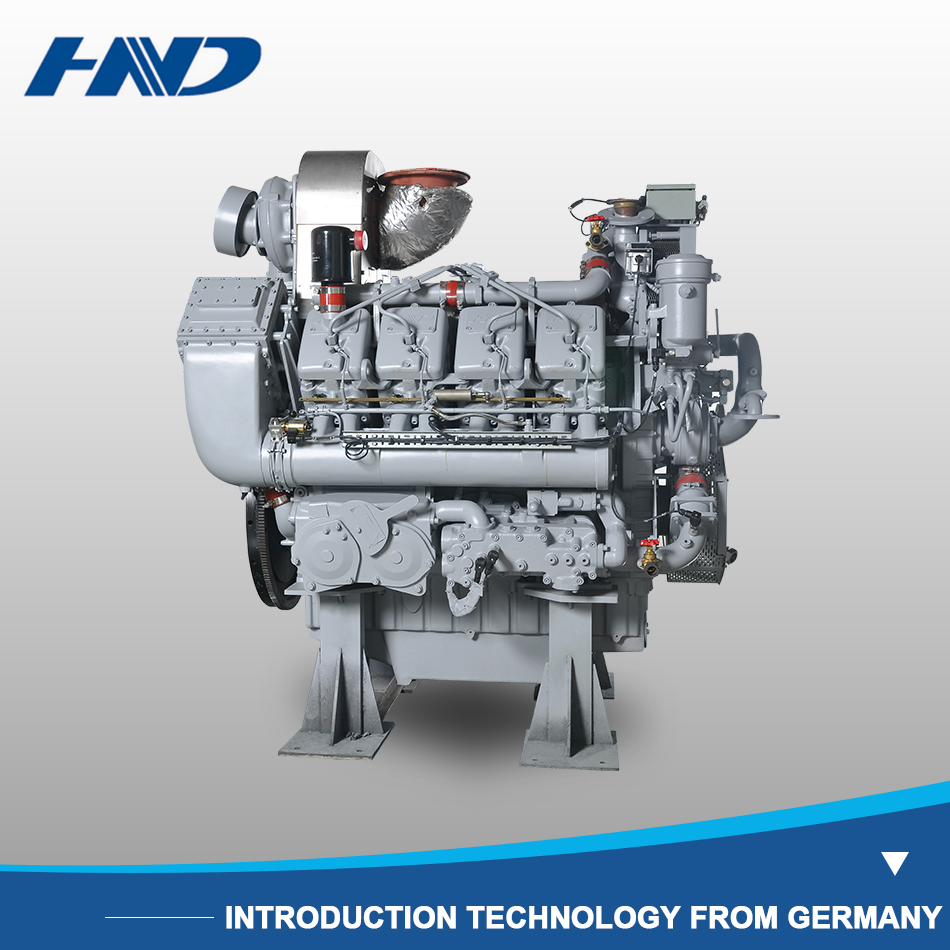

Series TBD604BL6 diesel engines           Series TBD620 diesel engines           Model, four-stroke, water-cooling, in-line Number of cylinders 6 Bore/stroke 170mm/195mm Specific fuel consumption 192g/kW.h Output 373-637 kW Speed 1200-1800r/min Model, four-stroke, water-cooling, in-line /90 in V Number of cylinders L6    V8    V12   V16 Bore/stroke 170mm/195mm Specific fuel consumption 196g/kW.h Output 620-2336 kW Speed 1500-1860r/min
